| 1. Support for an Intel® Core™ i7 series processor/Intel® Core™ i5 series processor/Intel® Core™ i3 series processor/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package package |
| 2. L3 cache varies with CPU |
| |
| (Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.) |
| Chipset | 1. Intel® H67 Express Chipset |
|
| Memory | 1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory |
| * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB. |
| |
| 2. Dual channel memory architecture |
| 3. Support for DDR3 1333/1066/800 MHz memory modules |
| 4. Support for non-ECC memory modules |
| |
| (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) |
| Onboard Graphics | Integrated Graphics Processor: |
| |
| 1. 1 x D-Sub port |
| 2. 2 x HDMI ports, supporting a maximum resolution of 1920x1200 |
| |
| Audio | 1. Realtek ALC889 codec |
| 2. High Definition Audio |
| 3. 2/4/5.1/7.1-channel |
| 4. Support for Dolby® Home Theater |
| 5. Support for S/PDIF Out |
| |
| LAN | 1. 1 x Realtek RTL8111E chip (10/100/1000 Mbit) |
|
| Expansion Slots | 1. 1 x PCI Express x16 slot, running at x16 |
| (The PCIEX16 slot conforms to PCI Express 2.0 standard.) |
| |
| Storage Interface | Chipset: |
| |
| 1. 2 x SATA 6Gb/s connectors (SATA3_0~SATA3_1) supporting up to 2 SATA 6Gb/s devices |
| 2. 2 x SATA 3Gb/s connectors (SATA2_2~SATA2_3) supporting up to 2 SATA 3Gb/s devices |
| 3. 1 x eSATA 3Gb/s connector on the back panel supporting up to 1 SATA 3Gb/s device |
| 4. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 |
| * When a RAID set is built across the SATA 6 Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected. |
| |
| USB | Chipset: |
| |
| 1. Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers) |
| |
| Renesas D720200 chip: |
| |
| 1. Up to 2 USB 3.0/2.0 ports on the back panel |
| |
| Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector |
| 2. 1 x 4-pin ATX 12V power connector |
| 3. 2 x SATA 6Gb/s connectors |
| 4. 2 x SATA 3Gb/s connectors |
| 5. 1 x CPU fan header |
| 6. 1 x system fan header |
| 7. 1 x front panel header |
| 8. 1 x front panel audio header |
| 9. 1 x S/PDIF Out header |
| 10. 2 x USB 2.0/1.1 headers |
| 11. 1 x clearing CMOS jumper |
| |

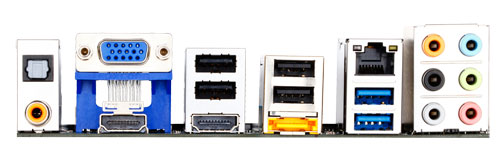

| Back Panel Connectors | 1. 1 x optical S/PDIF Out connector |
| 2. 1 x coaxial S/PDIF Out connector |
| 3. 1 x D-Sub port |
| 4. 2 x HDMI ports |
| 5. 4 x USB 2.0/1.1 ports |
| 6. 2 x USB 3.0/2.0 ports |
| 7. 1 x eSATA 3Gb/s connector |
| 8. 1 x RJ-45 port |
| 9. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone) |
| |
| I/O Controller | 1. iTE IT8728 chip |
|
| H/W Monitoring | 1. System voltage detection |
| 2. CPU/System temperature detection |
| 3. CPU/System fan speed detection |
| 4. CPU fan speed control |
| * Whether the CPU fan speed control function is supported will depend on the CPU cooler you install. |
| |
| BIOS | 1. 2 x 32 Mbit flash |
| 2. Use of licensed AWARD BIOS |
| 3. Support for DualBIOS™ |
| 4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b |
| |
| Unique Features | 1. Support for @BIOS |
| 2. Support for Q-Flash |
| 3. Support for Xpress BIOS Rescue |
| 4. Support for Download Center |
| 5. Support for Xpress Install |
| 6. Support for Xpress Recovery2 |
| 7. Support for EasyTune |
| * Available functions in EasyTune may differ by motherboard model. |
| 8. Support for Dynamic Energy Saver™ 2 |
| 9. Support for Smart 6™ |
| 10. Support for Auto Green |
| 11. Support fo eXtreme Hard Drive (X.H.D) |
| 12. Support for ON/OFF Charge |
| 13. Support for Cloud OC |
| 14. Support for Q-Share |
| |
| Bundle Software | 1. Norton Internet Security (OEM version) |
|
| Operating System | 1. Support for Microsoft® Windows® 8/7/Vista/XP |
|
| Form Factor | 1. Mini-ITX Form Factor; 17.0cm x 17.0cm |
|
| Remark | 1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. |
| 2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website. |
| 3. Minimum 200 Watts power supply is suggested on this model. |
| |
